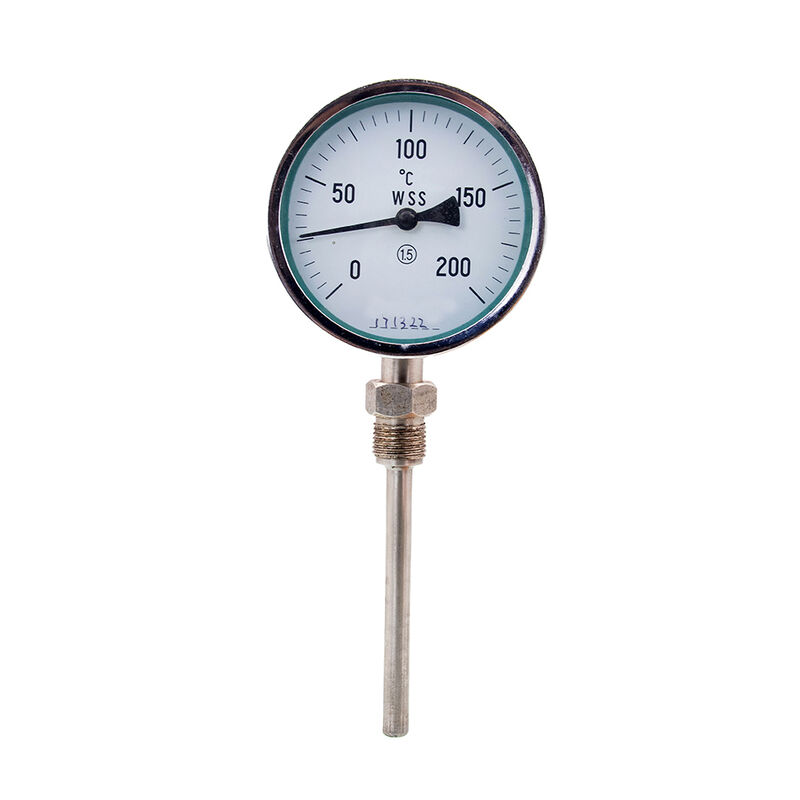

BIMETAL THERMOMETER WSS 411
| Place of Origin | China |
| Brand Name | JIABO |
| Certification | CCS 、BV |
reliable bimetal thermometer
,Precise bimetal thermometer
,Robust bimetal thermometer
Product Highlights
The WSS-411 Bimetal Thermometer is a reliable, direct-reading temperature measurement instrument designed specifically for industrial applications. Combining durability with high precision, this product provides clear, real-time temperature readings for pipelines, storage tanks, and various types of equipment.
Precise and Reliable: Features a Class 1.5 accuracy rating, ensuring dependable temperature monitoring for critical industrial processes.
Wide Measurement Range: Covers a temperature range spanning from -40~80°C to 0~500°C, making it suitable for a diverse array of complex industrial environments.
Flexible Configuration: Offers various insertion depths (75mm to 1000mm) and mounting thread options (M27×2 / G 3/4") to accommodate different installation requirements.
Robust Construction: Features a Φ12mm double-layer protective tube design, ensuring long-term durability even under harsh operating conditions.
Technical Specifications (Complete Table)
| Model | dial dia. D(mm) | Measure range (℃) | Scale (℃) | Accuracy | Protector dia. d(mm) | Insert length L(mm) | Connection M | L₁ | H₁ | H₂ |
|---|---|---|---|---|---|---|---|---|---|---|
| WSS-301 | Φ60 | -40~80
|
2
|
2.5 | Φ6(Single)
|
75
|
M16×1.5
|
61 | - | - |
| WSS-311 | Φ60 | -40~80
|
2
|
2.5 | Φ6(Single)
|
75
|
M16×1.5
|
110 | 44 | 32 |
| WSS-401 | Φ100 | -40~80
|
2
|
1.5 | Φ8(Single)
|
75
|
M27×2
|
80 | - | - |
| WSS-411 | Φ100 | -40~80
|
2
|
1.5 | Φ8(Single)
|
75
|
M27×2
|
140 | 51 | 33 |
| WSS-501 | Φ150 | 0~200
|
5
|
1.5 | Φ10
|
75
|
M27×2
|
81 | - | - |
| WSS-511 | Φ150 | 0~200
|
5
|
1.5 | Φ10
|
75
|
M27×2
|
180 | 60 | 38 |
