Pressure Type Anti Vibration Thermometer
| Place of Origin | China |
| Brand Name | JIABO |
| Certification | CCS 、BV |
Product Details
Display Type:
LCD Digital Display
Weight:
120 Grams
Load Resistance:
≤500Ω
Communication Interface:
USB
Output:
4-20mA
Linearity:
±0.1%
Working Temperature:
-30℃～80℃
Sensor Excitation Current:
0.2 MA To 1.0 MA (for RTD Sensors)
Measurement Range:
-50°C To 1500°C
Temperature Compensation:
Built-in Temperature Compensation
Connection Thread:
User-selectable
Accuracy Class:
0.2% FS
Supply Voltage:
24VDC
Application:
Industrial Temperature Measuring
Warranty:
1 Year
Highlight:
Pressure Type Thermometer
,Anti Vibration Thermometer
Payment & Shipping Terms
Minimum Order Quantity
100
Delivery Time
5-8wrok days
Payment Terms
L/C,T/T,D/A
Supply Ability
100pices/per
Product Description
GENERAL

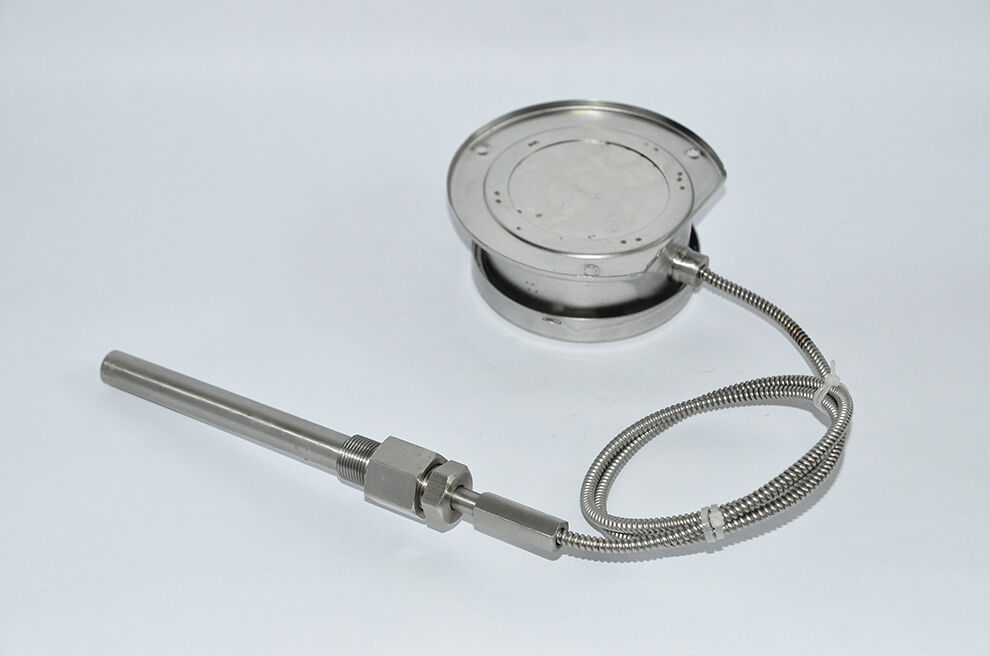

WTZ/Q-280 type pressure type thermometer can be used to remotely measure liquid, gas and steam etc in ship and other industrial equipment.
MAIN TECHNICAL SPECIFICATION
| Model | (℃) Measuring range | Accuracy | L (mm) Bulb insert length adjustable range | Bulb dia. | Connection | Casing material |
|---|---|---|---|---|---|---|
| WTZ-280 | -40~+60
|
1.5 | 150~2000 | Φ15 | M27X2
|
Phenolic resin
|
| WTQ-280 | -60~+40
|
2.5 | 320~420 | Φ22 | M27X2
|
Phenolic resin
|
| Type | (m) Capillary tube length | (m) Bulb and capillary tube material | (m) Max. length of capillary tube |
|---|---|---|---|
| General type | 1~20 | T2 | 20 |
| Anti-corrosive | 1~10 | 1Cr18Ni9Ti | 15 |
