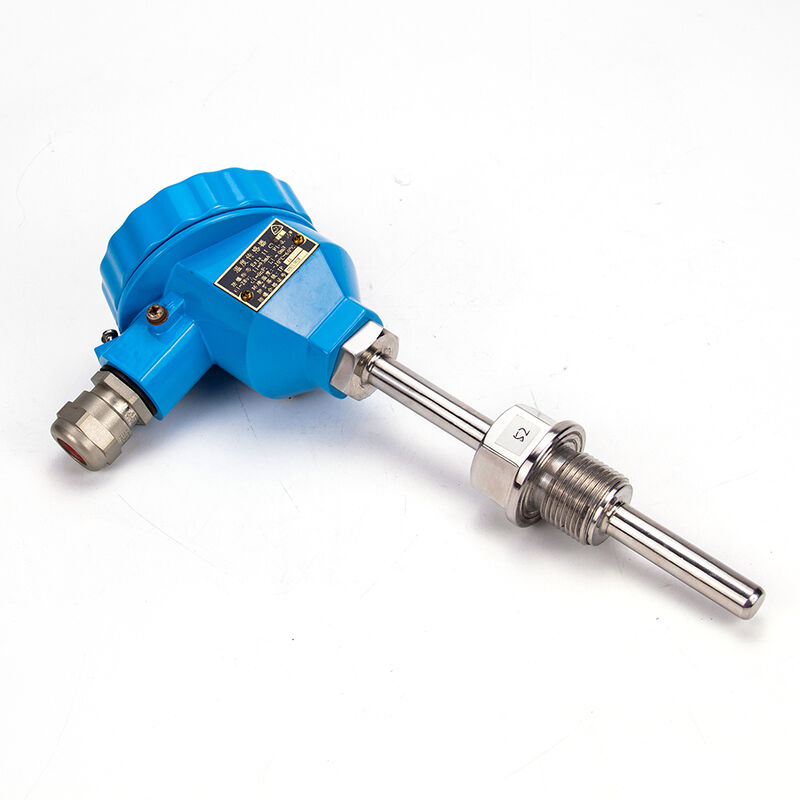

TEMPERATURE TRANSMITTER WZPK-22I-C
| Place of Origin | China |
| Brand Name | JIABO |
| Certification | CCS 、BV |
Large LCD temperature transmitter
,M20*1.5 temperature transmitter
The WZPK-22I-C is a high-performance armored RTD temperature transmitter built for industrial precision temperature measurement and signal transmission. Adopting high-quality platinum resistance sensing elements, it delivers stable, high-accuracy temperature detection with low thermal inertia and fast response speed. This integrated transmitter converts temperature signals into standard 4-20mA analog output, enabling seamless connection with PLC, data recorders and industrial control systems.
Featuring a flexible bendable armored structure and sturdy stainless steel protective tube, the sensor boasts excellent shock resistance, pressure resistance and durability. It adapts to complex and harsh industrial environments, including machinery manufacturing, petrochemical, power, HVAC and automated production lines. With simple installation, strong anti-interference capability and long service life, it ensures reliable and continuous temperature monitoring for industrial process control.
|
Parameter Item
|
Specifications
|
|---|---|
|
Model
|
WZPK-22I-C
|
|
Sensor Type
|
PT100 Platinum Resistance
|
|
Measurement Range
|
-70℃ ~ 500℃
|
|
Output Signal
|
Standard 4-20mA
|
|
Accuracy Grade
|
±0.2% FS / ±0.5% FS
|
|
Power Supply
|
DC 12V~32V
|
|
Protective Tube Diameter
|
Φ12mm / Φ16mm
|
|
Structural Feature
|
Armored, Bendable, Shockproof
|
|
Working Environment
|
-20℃ ~ 60℃, Humidity ≤85% (No Condensation)
|
|
Electrical Interface
|
M20×1.5 Standard Thread
|
|
Application Scenarios
|
Petrochemical, Power Industry, HVAC, Industrial Automation
|
