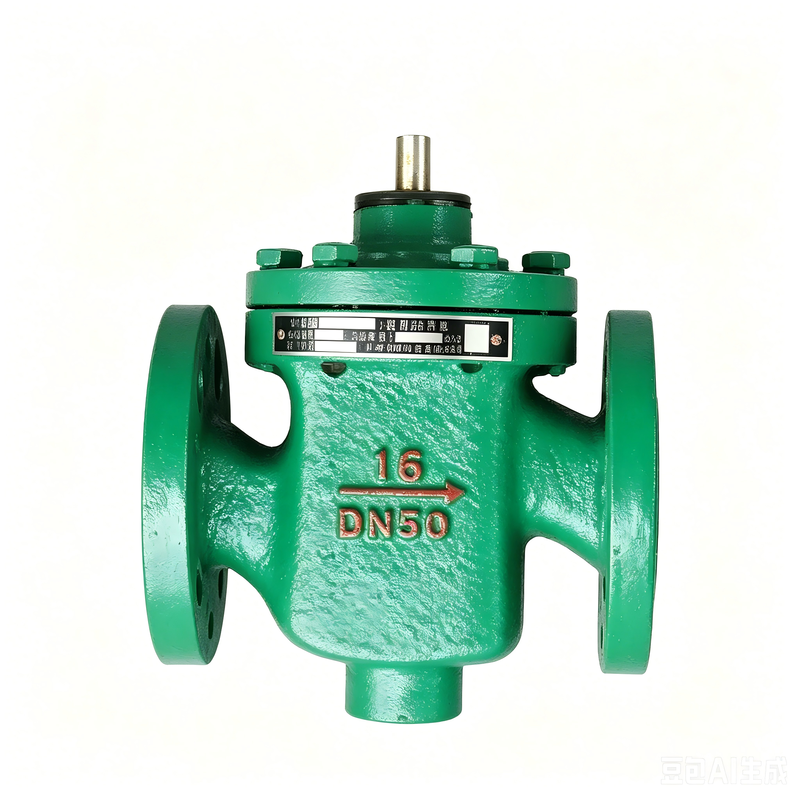

WTF Model Temperature Regulating Valve
| Place of Origin | China |
| Brand Name | JIABO |
| Certification | CCS 、BV |
Product Details
Highlight:
Temperature Regulating Valve
,1.6 MPa Regulating Valve
,WTF type Regulating Valve
Payment & Shipping Terms
Minimum Order Quantity
100
Packaging Details
standard package
Payment Terms
T/T,L/C
Supply Ability
100pices/per
Product Description
WTF type temp. regulating valve is a temp. controlling equipment that based on heat expansion principle. It can be widely used toauto regulate temp. of heat exchanger, fuel prcheaing, central heaing, central air-condition ete. in ship and other industrial equipment.
MAIN TECHNICAL SPECIFICATION
Nominal diameter : 15, 20, 25, 32, 40, 50, 65, 80, 100 mm ;
Nominal pressure : 1.6 MPa ;
Temperature regulated range : 30-90°C, 60-120°C, 0-120 °C ;
Applicable medium : steam, hot oil (T ≤ 185 C ),hot water ;
Over temperature safety range : ≤ 20°C ;Action sensitivity:≤ +2°C;
Bulb type : column pipe type, helix pipe type ;
Basic specification :
| Model | DN (mm) | Rating flow of steam (kg/h) | Rating flow of water (m³/h) | Max. pressure drop (MPa) | Leakage | ||
| D | P | S | |||||
| WTF-15 | 15 | 120 | 2.75 | 1.5 | ≤ 0.05% | ||
| WTF-20 | 20 | 200 | 5 | 0.66 | ≤ 0.05% | ||
| WTF-25 | 25 | 320 | 7.5 | 0.47 | 1.5 | ≤ 0.05% | |
| WTF-32 | 32 | 520 | 12.5 | 0.19 | 1.2 | 2.4 | ≤ 0.05% |
| WTF-40 | 40 | 800 | 20 | 0.08 | 0.82 | 2 | ≤ 0.05% |
| WTF-50 | 50 | 1400 | 30 | 0.04 | 0.58 | 1.6 | ≤ 0.05% |
| WTF-65 | 65 | 2000 | 50 | 0.5 | 0.84 | ≤ 0.5% | |
| WTF-80 | 80 | 3200 | 80 | 0.65 | ≤ 0.5% | ||
| WTF-100 | 100 | 5000 | 125 | 0.5 | ≤ 0.5% | ||
| Note: 1. Rating flow is the flow when import pressure of valve is 0.49MPa, pressure differential between two ends is 0.1 MPa, and valves are open. 2. Max. pressure drop is the pressure differential when the valve is closed. 3. Please note product model, capillary length, control range, hot medium(steam or hot oil) when you order the products. |
|||||||
