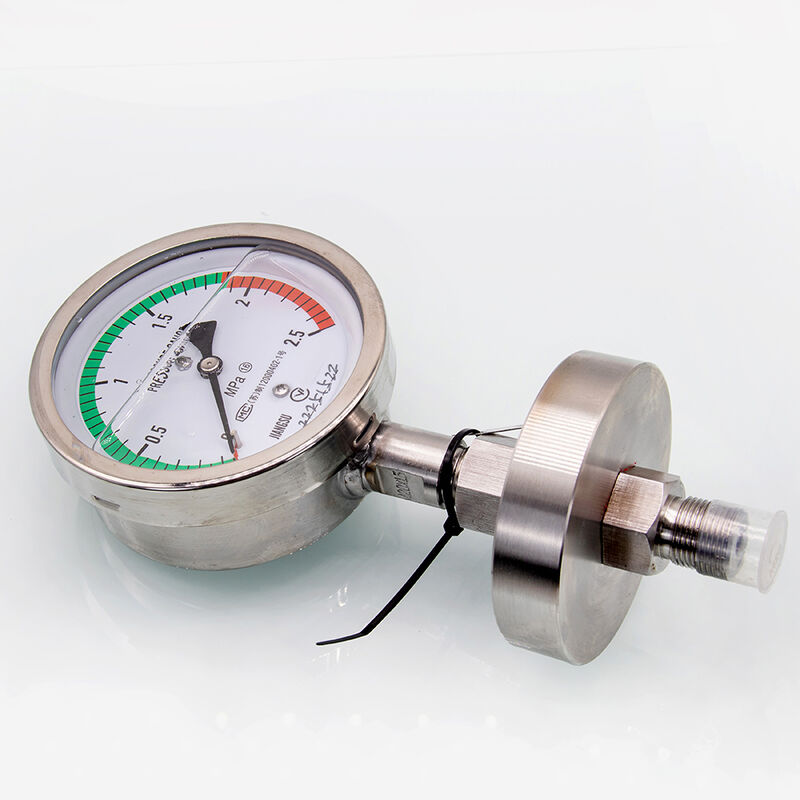

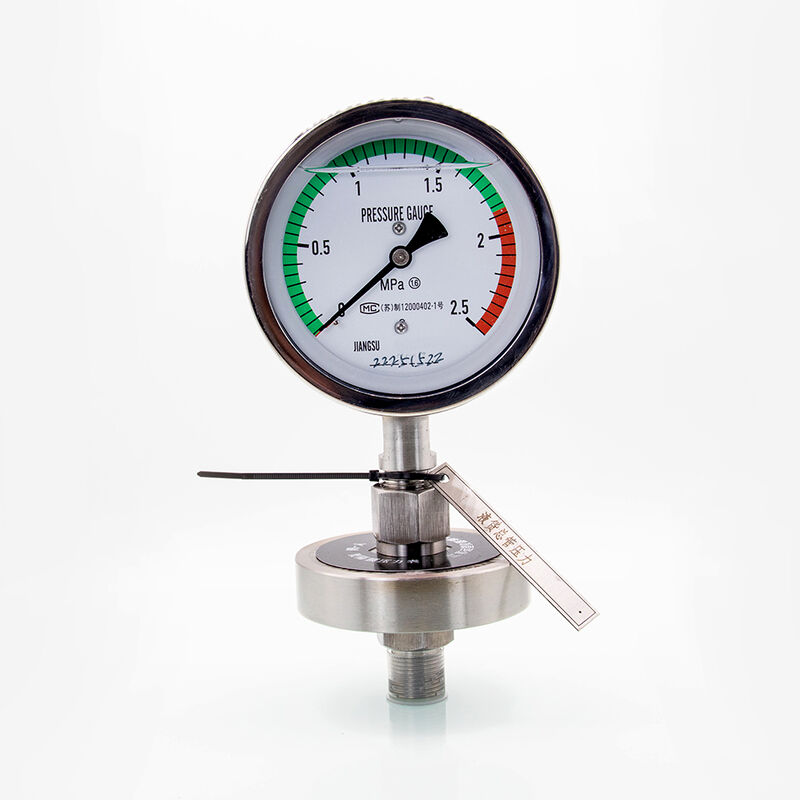

316L Stainless Steel Pressure Gauge
| Place of Origin | China |
| Brand Name | JIABO |
| Certification | CCS 、BV、 |
| Model Number | YC |
Product Details
Common Use:
Web Server Access Restriction
Server:
Openresty
User Action:
Check Permissions Or Credentials
Description:
Access To The Requested Resource Is Denied
Highlight:
316l stainless steel pressure gauge
,316l digital pressure gauge
Payment & Shipping Terms
Minimum Order Quantity
100
Packaging Details
standard package
Delivery Time
5-8 Work days
Payment Terms
D/A,L/C,T/T
Supply Ability
100pices/per
Product Description
The 316L Stainless Steel Pressure Gauge is a heavy-duty industrial pressure measuring instrument engineered for corrosive, high-humidity and harsh working conditions. Adopting premium 316L stainless steel for the wetted parts and full casing, it features excellent acid and alkali resistance, anti-rust performance and superior mechanical strength, far exceeding ordinary stainless steel pressure gauges in durability and environmental adaptability.
This mechanical pressure gauge supports multi-range pressure detection for gas and liquid media. It can be customized with glycerine or silicone oil filling to effectively resist vibration and pressure impact, ensuring stable pointer operation and accurate readings. With compact structure, diverse mounting methods and simple installation, it is widely applied in petrochemical, marine engineering, pharmaceutical, food processing and hydraulic pneumatic systems, serving as a reliable pressure monitoring solution for industrial process safety control.
|
Parameter Item
|
Specifications
|
|
Product Name
|
316L Stainless Steel Pressure Gauge
|
|
Material
|
316L Stainless Steel (Case & Wetted Parts)
|
|
Pressure Range
|
-0.1~0MPa / 0~1.6MPa / 0~100MPa (Customizable)
|
|
Accuracy Grade
|
±1.6% FS / ±2.5% FS
|
|
Dial Size
|
63mm / 100mm / 150mm
|
|
Damping Type
|
Dry Type / Glycerine Filled / Silicone Oil Filled
|
|
Mounting Type
|
Bottom Mount / Back Mount
|
|
Thread Specification
|
M20×1.5 / 1/4NPT / Custom
|
|
Working Temperature
|
-40℃ ~ 100℃
|
|
Protection Grade
|
IP65
|
|
Application Scenarios
|
Petrochemical, Marine, Pharmaceutical, Hydraulic & Pneumatic Industry
|
