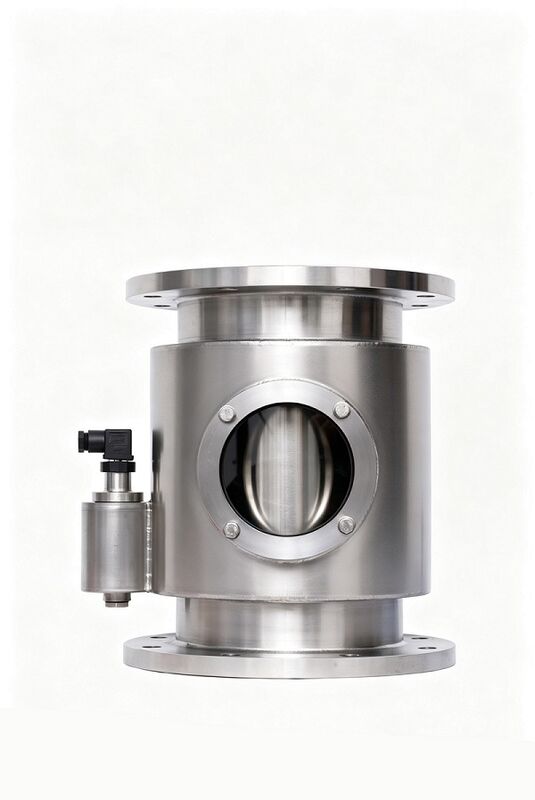

UQK-Type Overflow Observing Annunciator
| Place of Origin | CHINA |
| Brand Name | JIABO |
| Certification | CCS 、BV |
Product Details
Highlight:
Overflow Monitoring and Alarm Unit
,alarm monitoring system in ship
,Overflow vessel alarm monitoring system
Payment & Shipping Terms
Minimum Order Quantity
1-100
Packaging Details
standard package
Delivery Time
5-15wrok days
Payment Terms
L/C,T/T
Supply Ability
10pices/per
Product Description
The Model UQK-Type Overflow Observing Annunciator is a novel device that integrates overflow observation and display functions with liquid level alarming capabilities. This product combines liquid flow monitoring and level alarming into a single unit, characterized by its compact structure, reliable performance, safety, and practicality. It is suitable for use in ships and other industrial equipment to monitor, provide alarms for, or control the operational safety of overflow pipelines associated with liquid storage and supply systems.
| DN | Dimension (mm) | |||||
|---|---|---|---|---|---|---|
| H | B | D | D1 | d | n | |
| 32 | 230 | 95 | 115 | 83 | 15 | 6 |
| 40 | 230 | 100 | 125 | 93 | 15 | 6 |
| 50 | 280 | 110 | 135 | 103 | 15 | 6 |
| 65 | 280 | 120 | 155 | 123 | 15 | 6 |
| 80 | 300 | 125 | 170 | 138 | 15 | 8 |
| 100 | 350 | 135 | 190 | 158 | 15 | 8 |
| 125 | 370 | 145 | 215 | 183 | 15 | 10 |
| 150 | 370 | 155 | 240 | 208 | 15 | 12 |
| 200 | 370 | 190 | 295 | 264 | 15 | 12 |
| 250 | 370 | 225 | 365 | 327 | 17 | 14 |
