OVERFLOW OBSERVING ANNUNCIATOR UQK A
| Place of Origin | China |
| Brand Name | JIABO |
| Certification | CCS 、BV |
Product Details
Highlight:
overflow observing annunciator
,OVERFLOW ship alarm monitoring system
,compact Marine Alarm Monitoring System
Payment & Shipping Terms
Minimum Order Quantity
100
Packaging Details
standard package
Delivery Time
5-8 Work days
Payment Terms
L/C,T/T
Supply Ability
100pices/per
Product Description

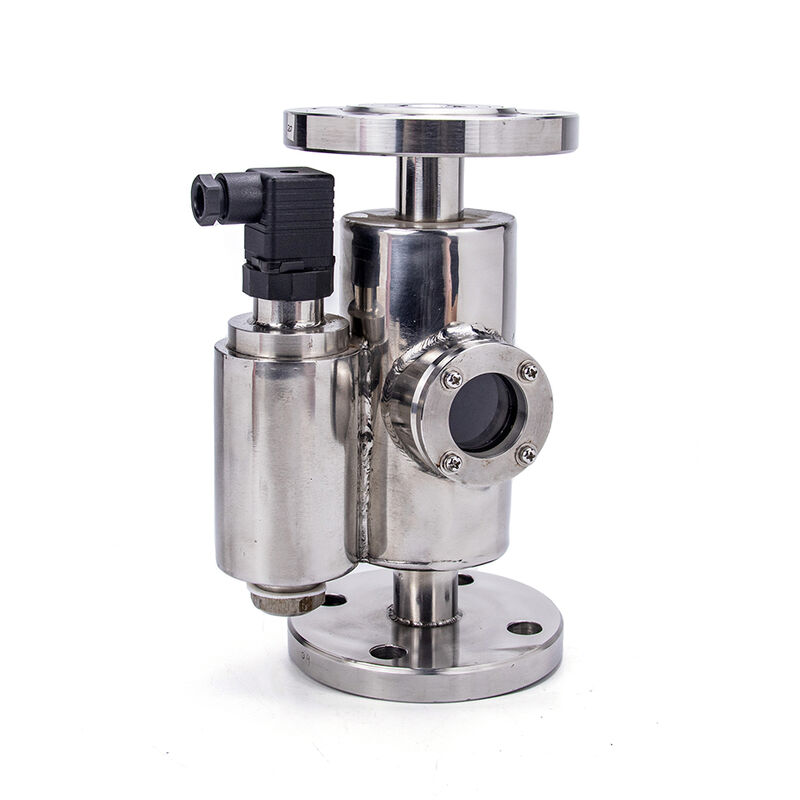

The UQK‑A Overflow Observing Annunciator is a compact, marine‑grade liquid monitoring device that integrates visual flow observation and automatic overflow alarm in one unit. Designed primarily for shipboard overflow pipelines, oil tanks, and industrial liquid systems, it provides real‑time visual confirmation of liquid flow while triggering an electrical alarm signal upon overflow, ensuring safe operation and preventing spills.
Featuring a transparent observation window and a built‑in float‑actuated switch, the unit delivers reliable performance under marine and industrial conditions. Its robust construction, standard flange connection, and SPDT alarm output make it easy to install and integrate into control systems. The UQK‑A is widely certified for marine use and suitable for monitoring non‑corrosive liquids with moderate temperature and pressure limits.
| Parameter | Specification |
|---|---|
| Model | UQK‑A |
| Type | Overflow observing annunciator with visual window & float alarm |
| Nominal Diameter (DN) | 32, 40, 50, 65, 80, 100, 125, 150, 200, 250 mm |
| Nominal Pressure (PN) | 0.2 MPa |
| Medium Temperature | ≤ 100 °C |
| Medium Specific Gravity | ≥ 0.80 g/cm³ |
| Medium Viscosity | ≤ 0.02 Pa·s |
| Contact Type | SPDT (Single Pole Double Throw) |
| Contact Capacity | AC 220V, 1.0 A |
| Connection Flange | CB/T46‑2007, GB2506‑2005 (marine standards) |
| Housing Material | Carbon steel / Stainless steel (optional) |
| Observation Window | Tempered glass |
| Certifications | CCS, BV, ABS, LR, DNV, GL (marine type approvals) |
| Applications | Marine overflow pipelines, engine room oil tanks, industrial liquid storage systems |
